LameGFX

The LameStation graphics engine, providing a drawing surface and basic drawing functions.

gfx : "LameGFX"

Demos for this object can be found in the /demos/graphics/ folder of the SDK.

About

Call gfx.Start to start LameGFX. It should only be started once at the beginning of your program, before all drawing operations, and should be connected to LameLCD right away.

lcd.Start(gfx.Start)

Clear the screen to black with gfx.Clear, or fill to any color with gfx.Fill.

Call gfx.Sprite to draw images to the screen. If an image is exactly 128x64 pixels, use gfx.Blit for much faster drawing.

Use gfx.Map to draw level maps directly, or you can use LameMap for more functionality.

gfx.InvertColor changes all black pixels to white, and vice versa. This is useful as a cool effect or reusing graphics.

Clipping

LameGFX supports clipping, which allows you to limit the part of the screen that functions will draw to. This is useful if, for example, you want to show half of an image, or a progress bar that can fill up.

Call gfx.SetClipRectangle to set the clipping region, which is a rectangle from (0,0) to (128,64) by default. It will remain that size until you reset it to its normal size.

The first point is inclusive, while the second is exclusive. That means that a region of (0, 0, 128, 64) allows you to draw on pixels from (0,0) to (127,63).

Info

The second point must be to the right and down relative to the first, otherwise the clip rectangle will be of size (0,0), or not drawable.

Direct Drawing

You can draw to the LameGFX buffer directly. First, you must enable access. This is done by grabbing its address during setup.

VAR
    word    buffer
PUB
    lcd.Start(buffer := gfx.Start)

You can now access the 2048-byte block of memory pointed to by buffer.

LameGFX will wait until the previous drawing command is finished before starting a new one. However, advanced users may want to create their own drawing functions. If so, use gfx.WaitToDraw to ensure your function plays well with LameGFX.

Sprite Format

LameGFX has its own format for sprites.

Sprite Data

Each sprite has the same structure.

  • frameboost - The size of a frame in bytes, or width * height / 4.

  • width, height (0-65535) - The width and height of each frame in pixels.

  • data... - Image data.

Note

The width is rounded to the next nearest 8, so for an image 6x6 pixels, frameboost = 8 x 6 / 4.

DAT
gfx_data

word    <frameboost>
word    <width>, <height>

word    <data>, [<data>]...

Each pixel is two bits, so there are 8 pixels per word. Image data should be organized left-to-right, top-to-bottom, with frameboost / 2 words for each frame.

LameGFX supports 3 visible colors and one transparent color that is never drawn.

  • Black - 0

  • White - 1

  • Transparent - 2

  • Gray - 3

Sprites can contain multiple images, or frames, so that they can be animated by your program. The first frame is frame 0.

Sprite Interface

The address of image data can be passed directly to gfx.Sprite and gfx.Blit, unless stored in another object. If so, use this interface:

PUB Addr
    return @gfx_data

Creating Sprite Objects

lsimage or the command-line img2dat can be used to convert images into sprite objects, or they can be written by hand.

Functions

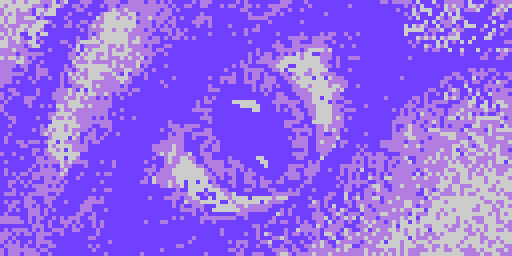

gfx.Blit

Draw a screen-sized (128x64) image to (0,0).

gfx.Blit(source)
  • source - The address of the sprite graphics.

This function is the only built-in function that doesn’t use gfx.Sprite for drawing. It performs a single block copy of the image, which is much faster than sprite drawing.

gfx.Clear

Clear the screen to black.

gfx.Clear

gfx.Fill

Fill the screen with a repeating word color.

gfx.Fill(color)
  • color - A word of color information with which to fill the screen.

gfx.InvertColor

Invert black and white pixels when drawing images.

gfx.InvertColor(enabled)
  • enabled - Passing true enables color inversion; false disables it.

gfx.InvertColor changes all black pixels to white, and vice versa. This is useful as a cool effect or reusing graphics.

gfx.Map

Draw a tile-based level map.

gfx.Map(tilemap, levelmap, offset_x, offset_y, x1, y1, x2, y2)

  • tilemap - The address of the tile map graphics data.

  • levelmap - The address of the level map data.

  • offset_x - The horizontal position of the map viewport relative to the origin.

  • offset_y - The vertical position of the map viewport relative to the origin.

  • x1 - The left edge of the map viewport on the screen.

  • y1 - The top edge of the map viewport on the screen.

  • x2 - The right edge of the map viewport on the screen.

  • y2 - The bottom edge of the map viewport on the screen.

Use gfx.Map to draw level maps directly, or you can use LameMap for more functionality.

gfx.SetClipRectangle

Change the portion of the screen that will be drawn to by LameGFX.

gfx.SetClipRectangle(x1, y1, x2, y2)

  • x1 - Left edge of the clip rectangle.

  • y1 - Top edge of the clip rectangle.

  • x2 - Right edge of the clip rectangle.

  • y2 - Bottom edge of the clip rectangle.

Call gfx.SetClipRectangle to set the clipping region, which is a rectangle from (0,0) to (128,64) by default. It will remain that size until you reset it to its normal size.

gfx.Sprite

Draw an image of any size to the screen.

gfx.Sprite(source, x, y, frame)

  • source - The address of the sprite graphics.

  • x - Horizontal position of sprite.

  • y - Vertical position of sprite.

  • frame - Frame of sprite to draw.

Call gfx.Sprite to draw images to the screen. All built-in drawing functions are built on gfx.Sprite except for gfx.Blit.

If an image is exactly 128x64 pixels, use gfx.Blit for much faster drawing.

gfx.Start

Initialize the LameGFX library.

gfx.Start

Call gfx.Start to start LameGFX. It should only be started once at the beginning of your program, before all drawing operations, and should be connected to LameLCD right away.

lcd.Start(gfx.Start)

gfx.WaitToDraw

Wait until the last drawing operation has completed before continuing.

gfx.WaitToDraw

LameGFX will wait until the previous drawing command is finished before starting a new one. However, advanced users may want to create their own drawing functions.

If so, use gfx.WaitToDraw to ensure your function plays well with LameGFX.

Constants

gfx#BLACK

The color black.

gfx#GRAY

The color gray.

gfx#SCREEN_H

Height of the screen in pixels.

gfx#SCREEN_W

Width of the screen in pixels.

gfx#TRANSPARENT

The color of transparency.

gfx#WHITE

The color white.
